Original: $140.55
-65%$140.55
$49.19The Story

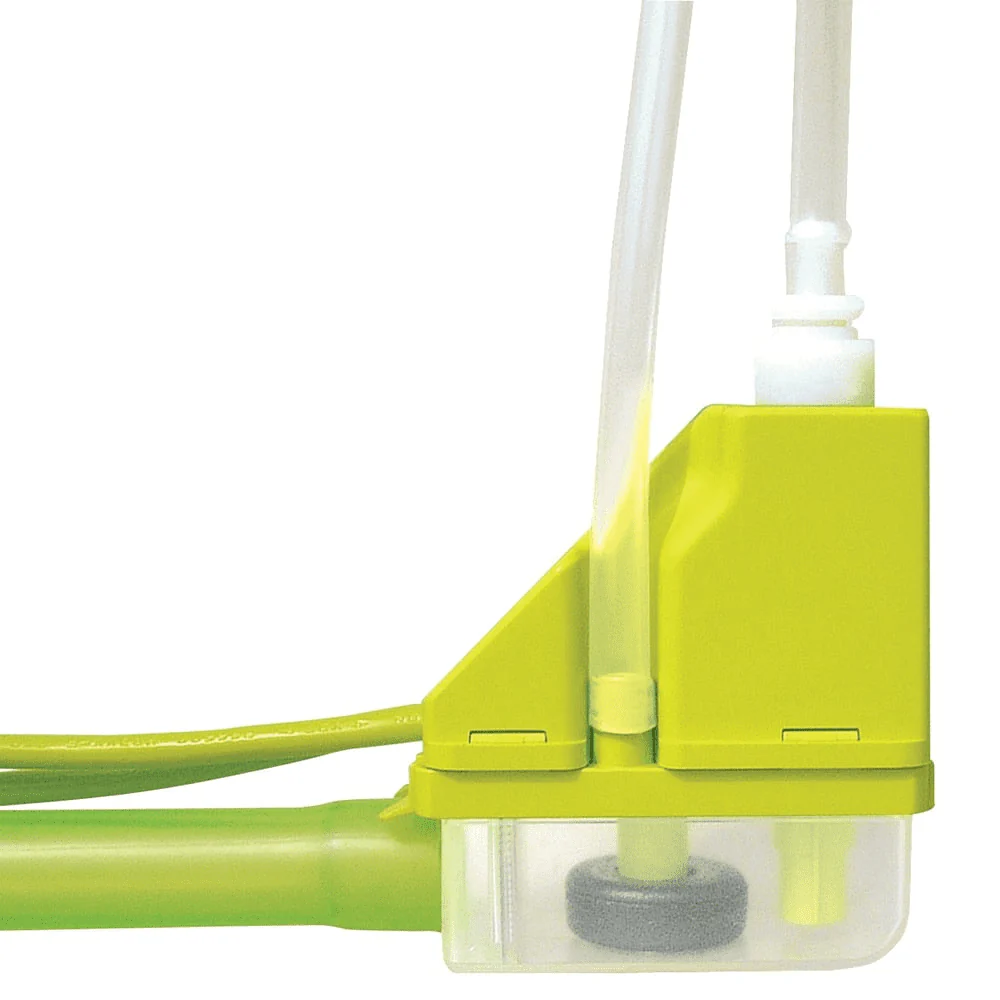

Designed for larger units & humid environments, the 'all-in-one system' Maxi Lime elbow pump gives you supreme power when needed. Pump only pack also available.
2 Options - please select below:

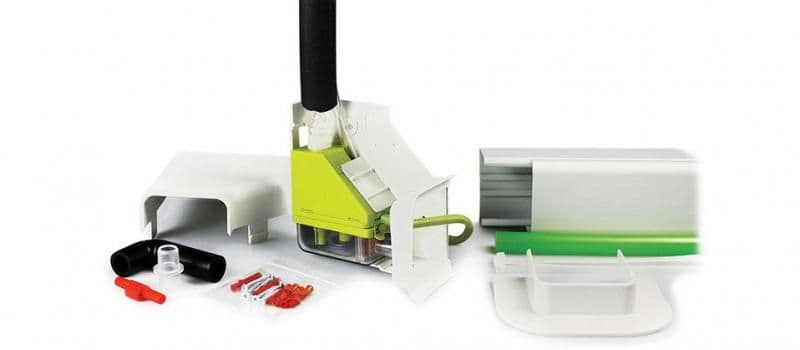

FP2213 - Pump with BBJ (Airco) Trunking 70mm x 65mm
FP2215 - Pump only pack
Key features
- Sits in trunking elbow
- Left or right install
- Range of trunking systems
- Easy access for servicing
Suitability
- Up to 46kW / 157,000Btu/h
- Large commercial AC units; High wall split systems
- Max. flow: 35 L/h @ 0 head
- Max. rec. head: 15m
- Sound level: 35dB(A) @ 1m
- Power supply: 230 VAC, 0.11A, 16W 50/60Hz
- Rated: Non continuous
- Class: II Appliance
- Max. unit output: 46kW / 157,000Btu/h
- Max. water temp: 40ºC / 104ºF
- Discharge tube: 6mm ID
- IP Protection: IP24
- Safety switch: 3.0A Normally closed
- Thermal protection:
- Fully potted:
- Self priming:
- Part number: FP2215
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Designed for larger units & humid environments, the 'all-in-one system' Maxi Lime elbow pump gives you supreme power when needed. Pump only pack also available.
2 Options - please select below:
FP2213 - Pump with BBJ (Airco) Trunking 70mm x 65mm
FP2215 - Pump only pack
Key features
- Sits in trunking elbow
- Left or right install
- Range of trunking systems
- Easy access for servicing
Suitability
- Up to 46kW / 157,000Btu/h
- Large commercial AC units; High wall split systems
- Max. flow: 35 L/h @ 0 head
- Max. rec. head: 15m
- Sound level: 35dB(A) @ 1m
- Power supply: 230 VAC, 0.11A, 16W 50/60Hz
- Rated: Non continuous
- Class: II Appliance
- Max. unit output: 46kW / 157,000Btu/h
- Max. water temp: 40ºC / 104ºF
- Discharge tube: 6mm ID
- IP Protection: IP24
- Safety switch: 3.0A Normally closed
- Thermal protection:
- Fully potted:
- Self priming:
- Part number: FP2215
