Select Size
From $13.11
Original: $37.47
-65%ITE Refrigeration Air Conditioning Ball Valves—
$37.47
$13.11The Story

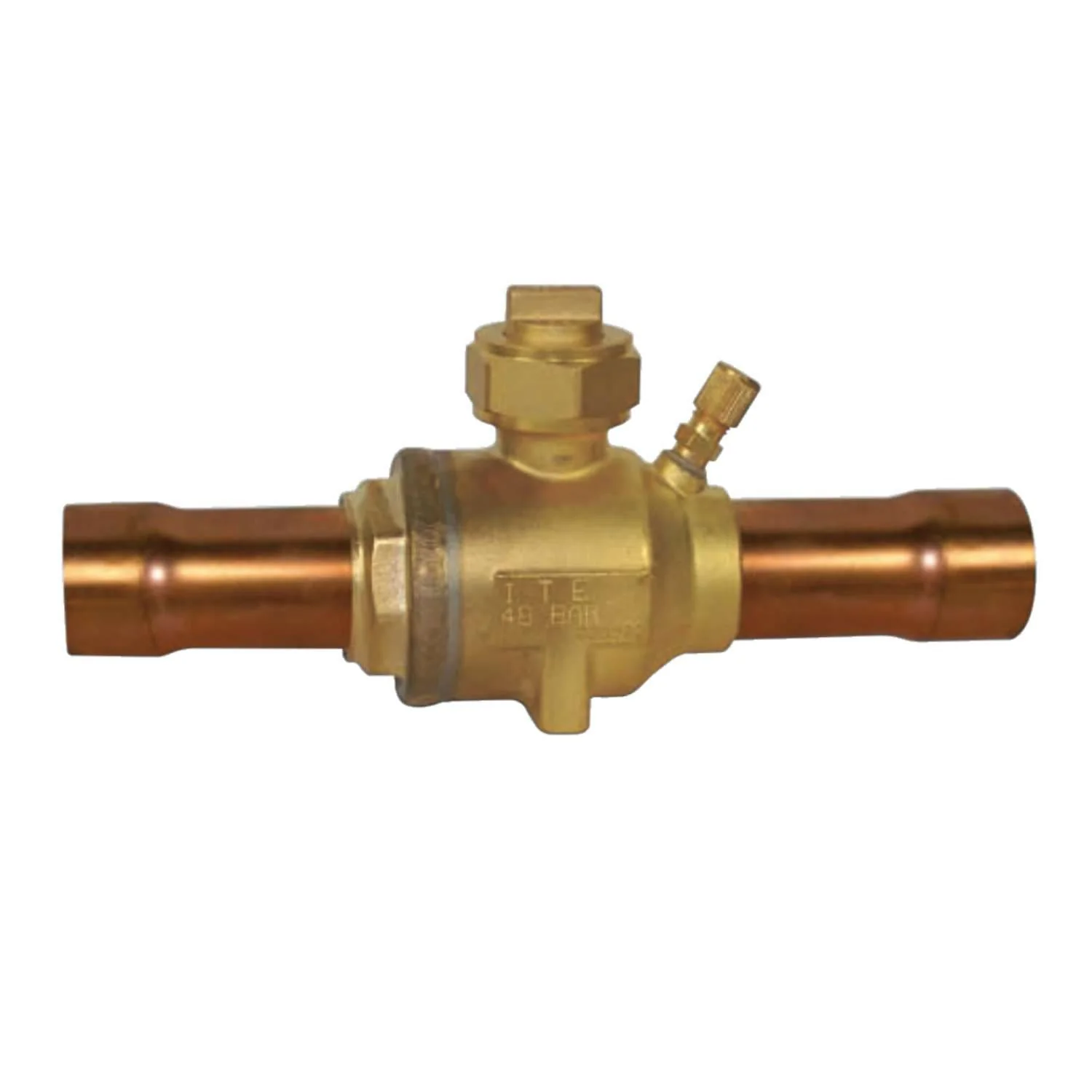

Bi Directional Refrigeration Ball Valves with Access Port
For air conditioning and refrigeration
One of the most advanced 1/4" to 3.1/8" Ball Valves
Features
- The valve may be installed in any direction of flow
- Maximum working pressure - 700PSI (48 bar)
- Operating temperature is from -40 ° C to +150 ° C (-40 ° F to 300 ° F)
- Full flow design reduces risks for leaks
- Supplied with access valve port positioned on the brass body
- Quick valve operation; 1/4 turn valve rod opens and closes the valve
- Extended copper ends for easier brazing
- Each valve is individually tested for vacuum and pressure as well as helium leak tested
- Supplied with pre-drilled threaded holes in brass feet (bracket and 2 screws are included) to allow easy mounting of the valve on a base plate.
- Suitable for all standard CFC, HCFC, HFC Refrigerants and oils (Including R410A and R744/CO2
Description
Bi Directional Refrigeration Ball Valves with Access Port
For air conditioning and refrigeration
One of the most advanced 1/4" to 3.1/8" Ball Valves
Features
- The valve may be installed in any direction of flow
- Maximum working pressure - 700PSI (48 bar)
- Operating temperature is from -40 ° C to +150 ° C (-40 ° F to 300 ° F)
- Full flow design reduces risks for leaks
- Supplied with access valve port positioned on the brass body
- Quick valve operation; 1/4 turn valve rod opens and closes the valve
- Extended copper ends for easier brazing
- Each valve is individually tested for vacuum and pressure as well as helium leak tested
- Supplied with pre-drilled threaded holes in brass feet (bracket and 2 screws are included) to allow easy mounting of the valve on a base plate.
- Suitable for all standard CFC, HCFC, HFC Refrigerants and oils (Including R410A and R744/CO2
