The Story

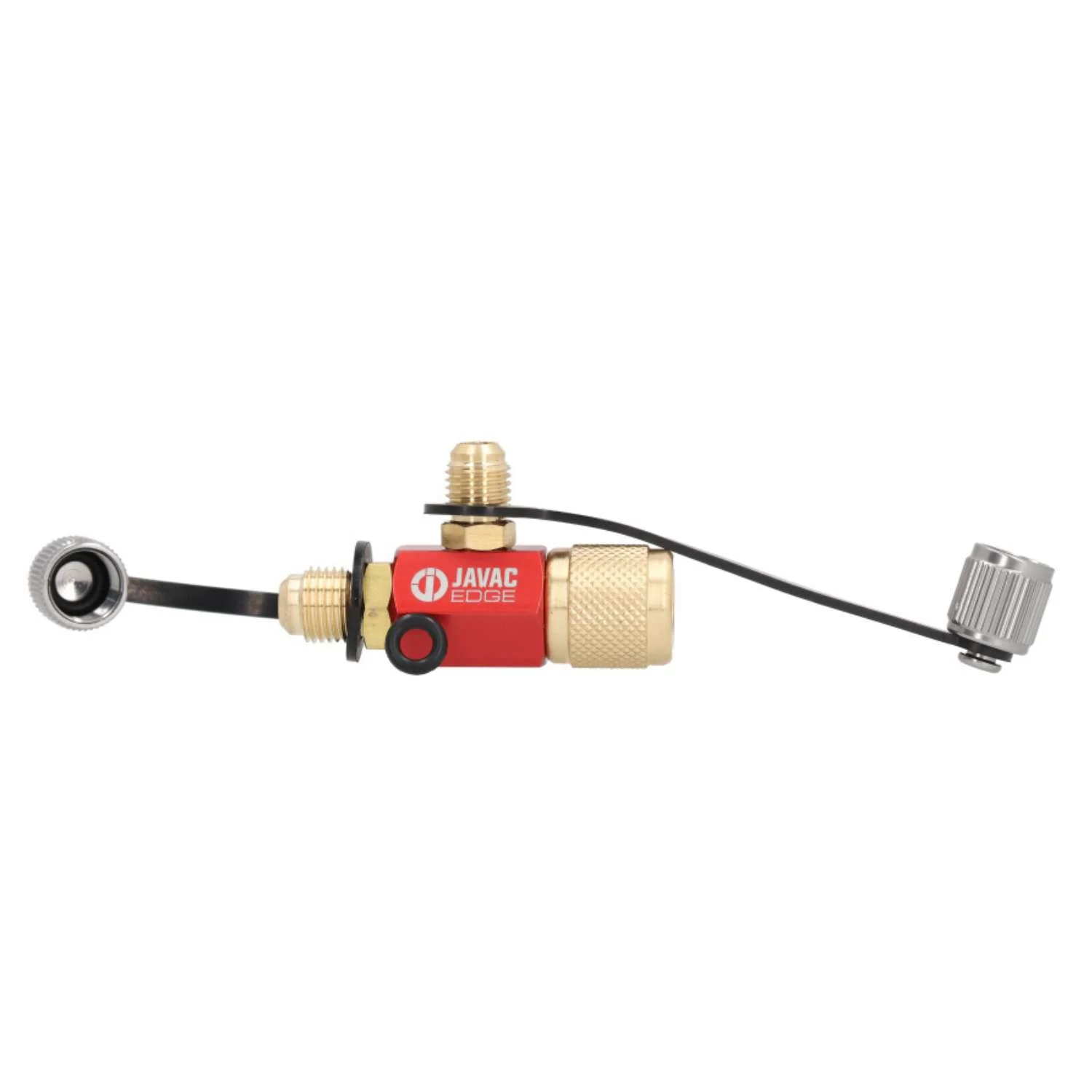

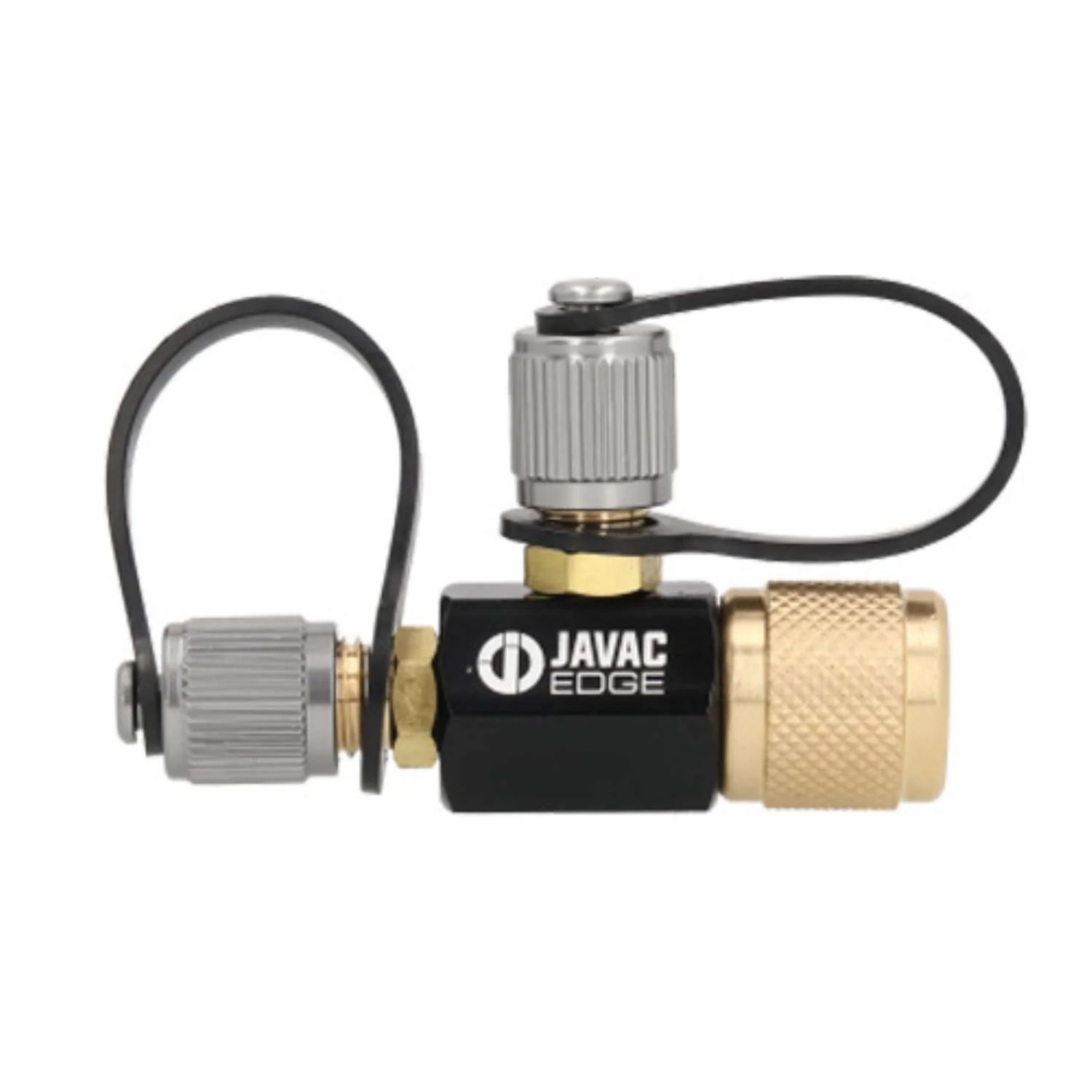

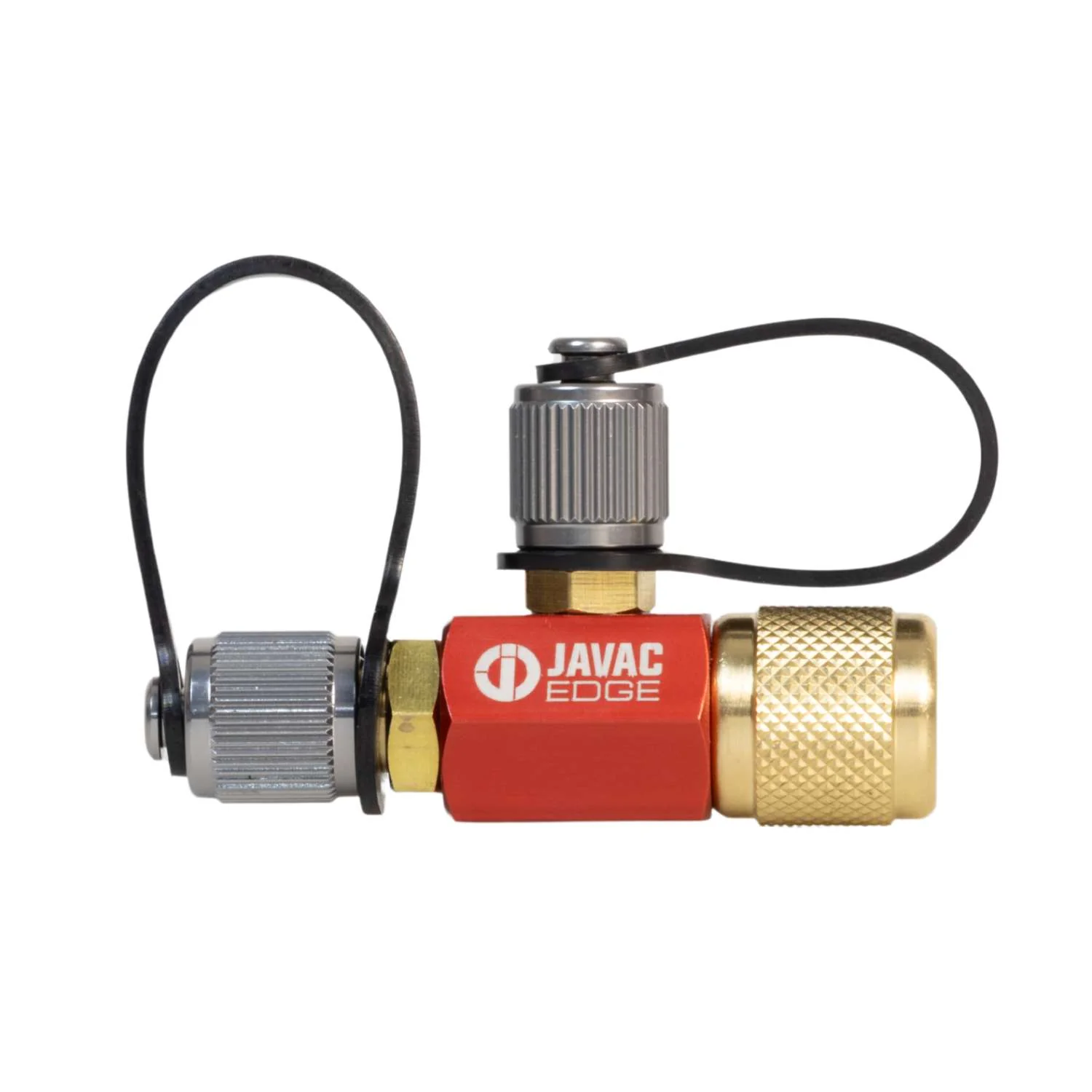

The Ultimate Hi-Flow Access T Fittings are vacuum and pressure rated T adaptors designed for HVAC/R service, charging and evacuation. Available in two sizes they provide a compact and low loss access point for gauges, vacuum pumps or reclaim units. With their light and compact design they are ideal to tap into a system without the need for bulky manifolds or unnecessary extra hoses.
Key Features & Benefits
Low-Loss Charging T – Enables charging, evacuation, or diagnostics with minimal refrigerant loss—no bulky manifold needed.
Side Port – Quick connection for gauges, pumps, or hoses without disconnecting the main service port.
Vacuum & Pressure Rated – Safe for deep vacuum and highpressure operations (up to 800psi / 55bar).
Compact Design – Ideal for use in tight spaces.
Efficient Access – Simplifies hose management and speeds up work in any environment.
| Part Number | Connection Size | Typical Usage |

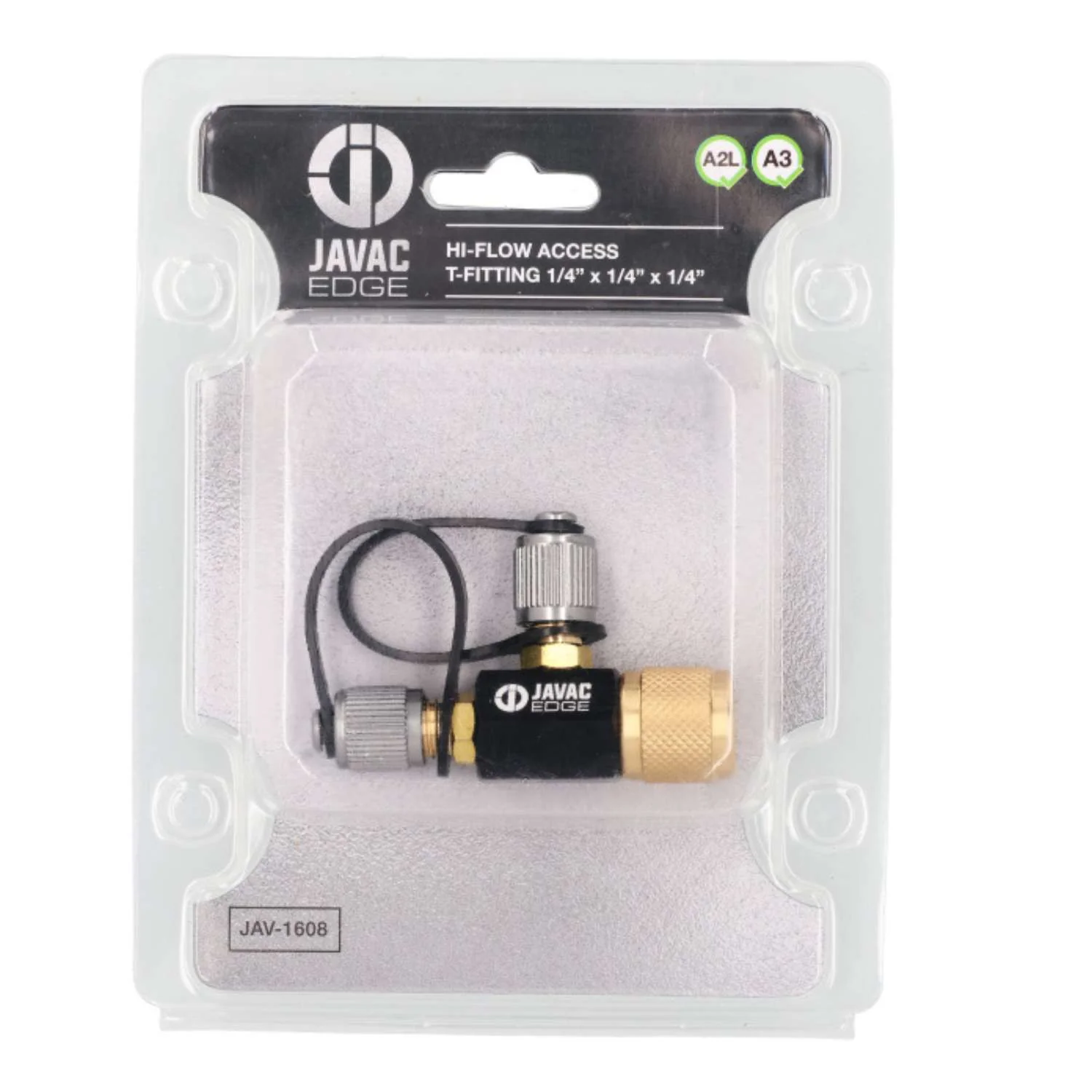

| JAV-1608 | 1/4” female flare 1/4” male flare 1/4” male flare side port |
Standard service fittings and systems using 1/4” flare connections |

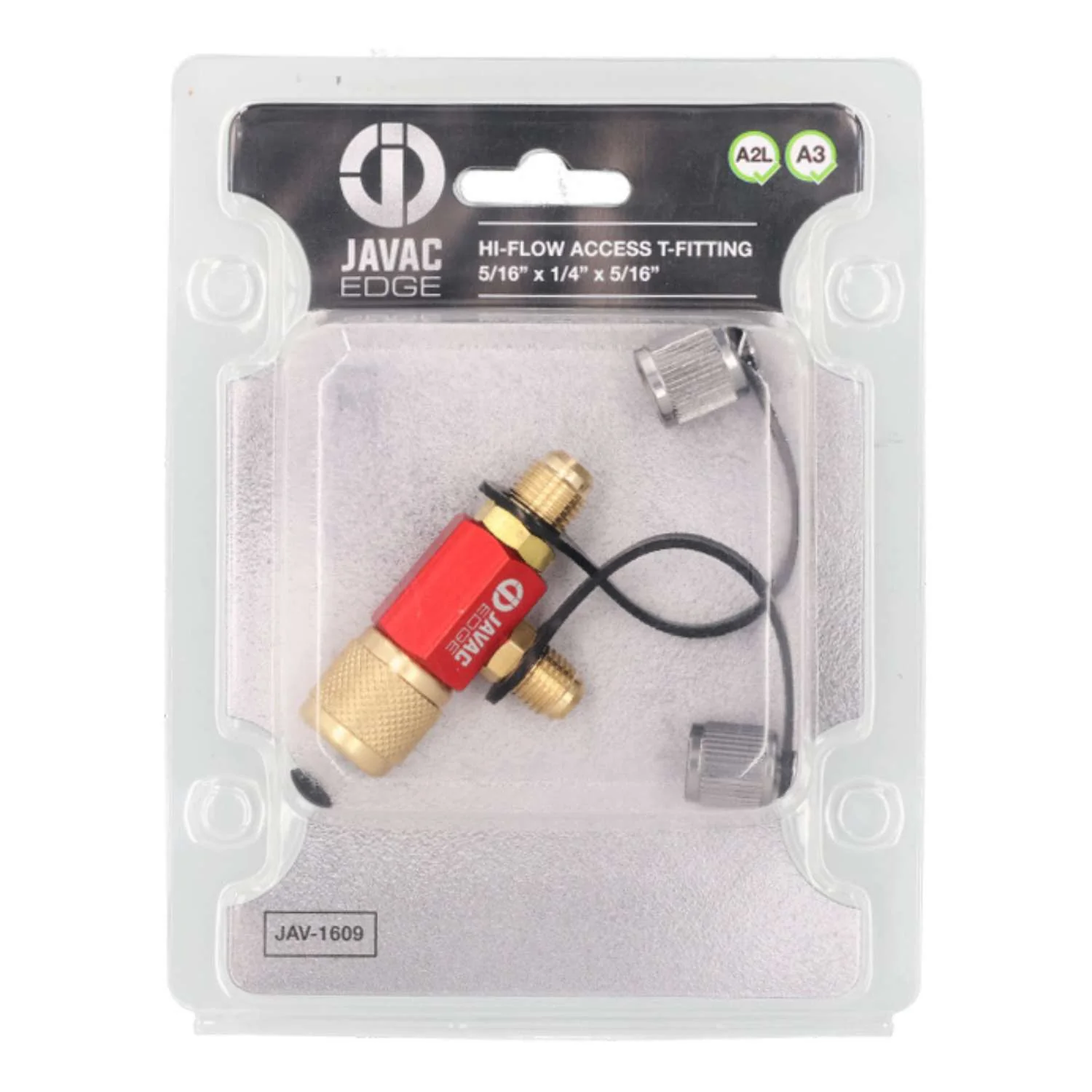

| JAV-1609 | 5/16” female flare 5/16” male flare 1/4” male flare side port |
For systems using larger 5/16” service fittings - especially in mini-split applications |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Ultimate Hi-Flow Access T Fittings are vacuum and pressure rated T adaptors designed for HVAC/R service, charging and evacuation. Available in two sizes they provide a compact and low loss access point for gauges, vacuum pumps or reclaim units. With their light and compact design they are ideal to tap into a system without the need for bulky manifolds or unnecessary extra hoses.
Key Features & Benefits
Low-Loss Charging T – Enables charging, evacuation, or diagnostics with minimal refrigerant loss—no bulky manifold needed.
Side Port – Quick connection for gauges, pumps, or hoses without disconnecting the main service port.
Vacuum & Pressure Rated – Safe for deep vacuum and highpressure operations (up to 800psi / 55bar).
Compact Design – Ideal for use in tight spaces.
Efficient Access – Simplifies hose management and speeds up work in any environment.
| Part Number | Connection Size | Typical Usage |
| JAV-1608 | 1/4” female flare 1/4” male flare 1/4” male flare side port |
Standard service fittings and systems using 1/4” flare connections |
| JAV-1609 | 5/16” female flare 5/16” male flare 1/4” male flare side port |
For systems using larger 5/16” service fittings - especially in mini-split applications |
