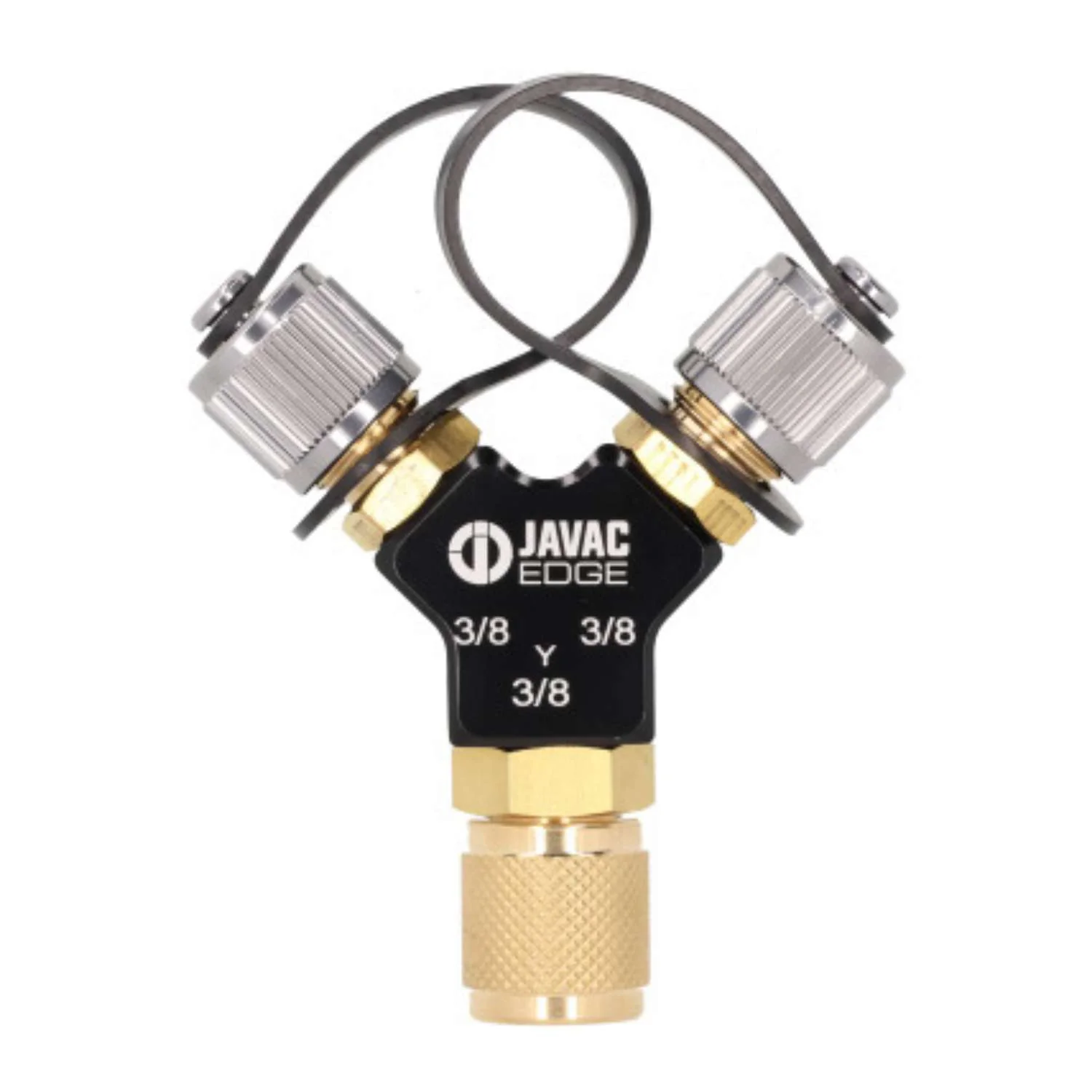

Javac Edge Ultimate Hi-Flow Y Fitting Series 3/8 x 3/8 x 3/8

Ultimate Hi-Flow Y Fitting. A high performance vacuum rated Y adaptor built for HVAC/R evacuation, recovery and charging operations. Designed to provide unrestricted high flow paths and flexible hose connections. Easily enabling engineers to connect multiple hoses to a single point - ideal for complex systems, multi port manifolds or multi hose recovery set ups. Also available with 3/8 x 3/8 x 1/4 connections (JAV-1603) or 3/8 x 3/8 x 1/2 connections (JAV-1604)

Ideal for air conditioning and refrigeration...

Unrestricted Flow – High linear flow design for maximum throughput, significantly speeding up evacuation and recovery.
Deep Vacuum Rated (20 microns) – Leak-free performance, crucial for reliable evacuation.

Specification
Body Material: Aircraft grade aluminium - for strength, light weight and corrosion resistance, with solid brass connectors and flare faces
Connection Types: Two 3/8” male flare branches. One Female flare swivel - branch size varies by model (3/8”, 1/4” or 1/2”)
Internal Bore/Flow Path: Large internal diameter branches engineered for high linear flow
Vacuum Rating: 20 microns suitable for deep system evacuation.
Maximum Safe Working Pressure: 800 psi (approx. 55bar) matching higher pressure refrigerant system requirements R410a / R32
Material & Seals: High-quality solid brass flare sealing elements suitable for refrigerants (HFC, HFO, A2L, A3) and HNBR Super Seals.
Finish/Coating: Durable anodized finish to resist oxidation/corrosion - Ideal for field use in varied environments.

JAV-1602
3/8” x 3/8” x 3/8”
Hi-flow Y for systems where all connections are 3/8”
