Refco Corner Condensate Pump Kit VAMP-CDK

The compact corner condensate pump with complete duct set
VAMP-CDK is REFCO’s first condensate pump supplied with a complete duct system – for a smart and space-saving installation in the corner of the duct. The refined design enables a stable, concealed installation close to the air conditioning unit – for a clean look and whisper-quiet operation.

All-in-one for new installations:

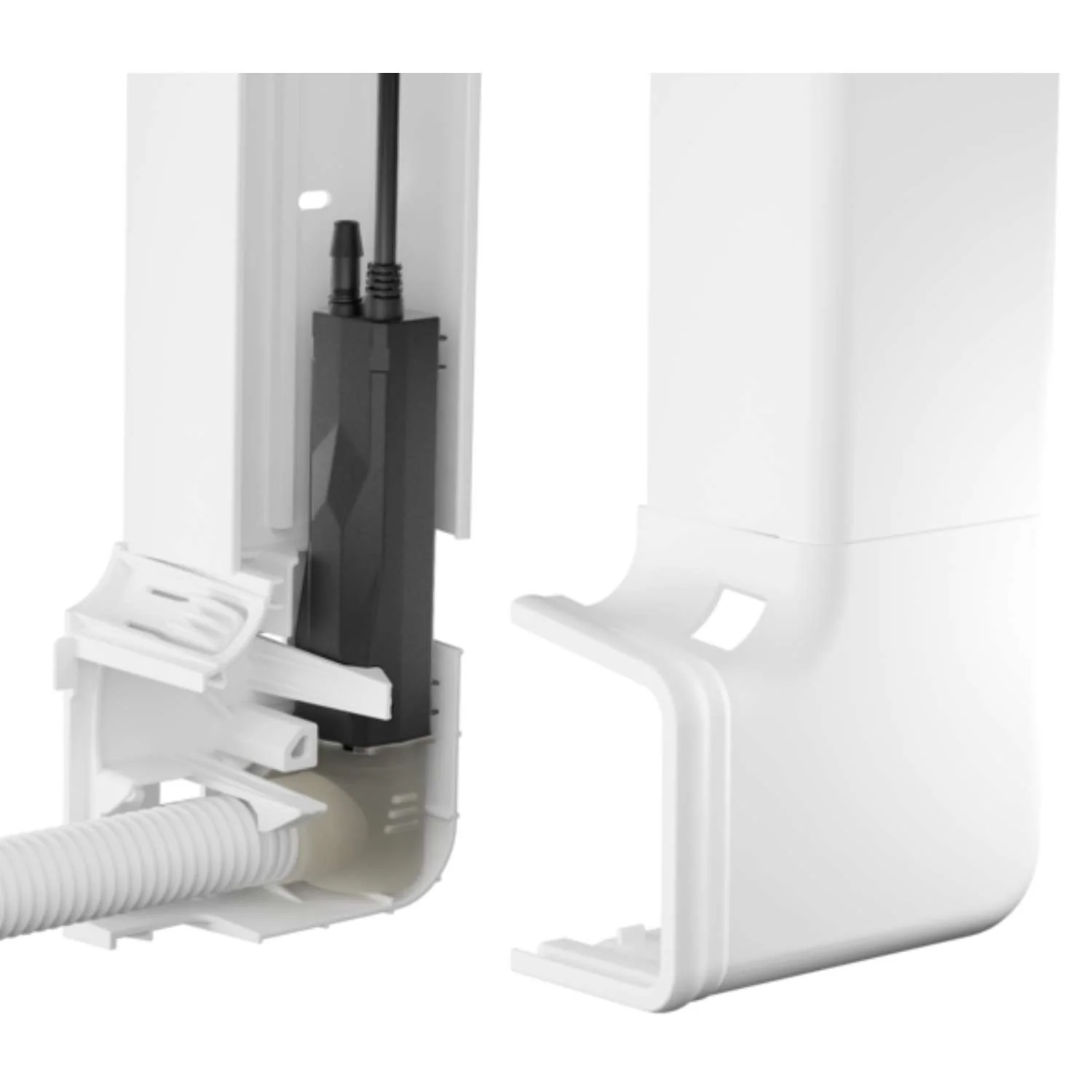

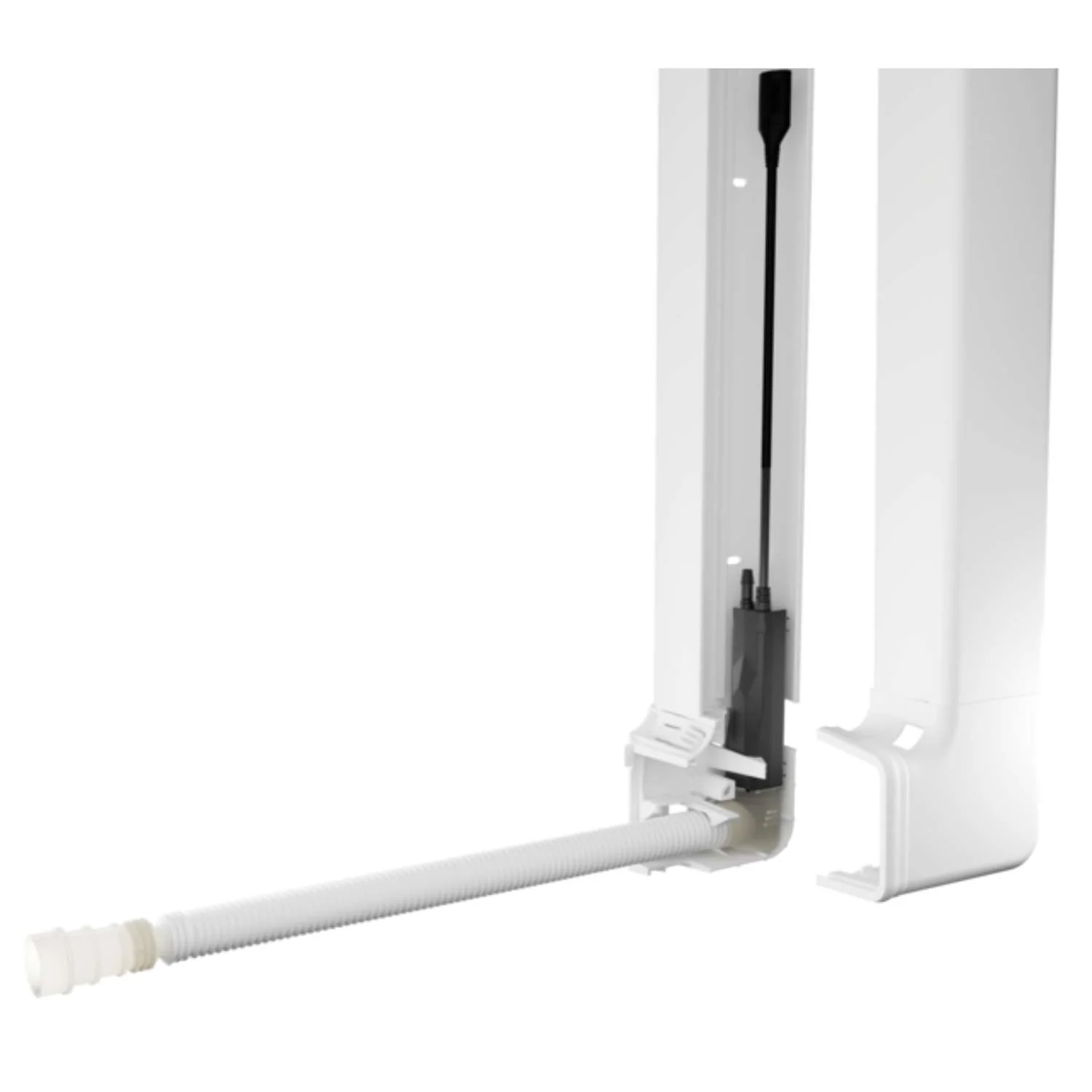

The compact duct set of VAMP-CDK – consisting of the condensate pump, duct corner, duct and collar – enables a stable, slim corner installation with minimal space requirements. Thanks to the specially shaped duct corner, the pump can be installed directly at the air conditioning unit – for a compact, discreet solution that meets the highest standards of technology and design.

Quiet, precise, powerful
With a sound level below 18 dB(A), VAMP-CDK operates almost silently – ideal for use in sensitive areas.
The optical sensor ensures accurate level measurement and low-maintenance operation. The powerful diaphragm pump delivers up to 22 litres per hour and achieves a discharge head of up to 15 metres – suitable for air conditioning units up to 18.5 kW (63,000 BTU/h) cooling capacity.

• Compact all-in-one duct set for corner installation close to the unit – including duct corner, duct and collar
• Invisible fastening for a clean installation image
• Compatible with common duct systems
• Easy installation close to the wall unit

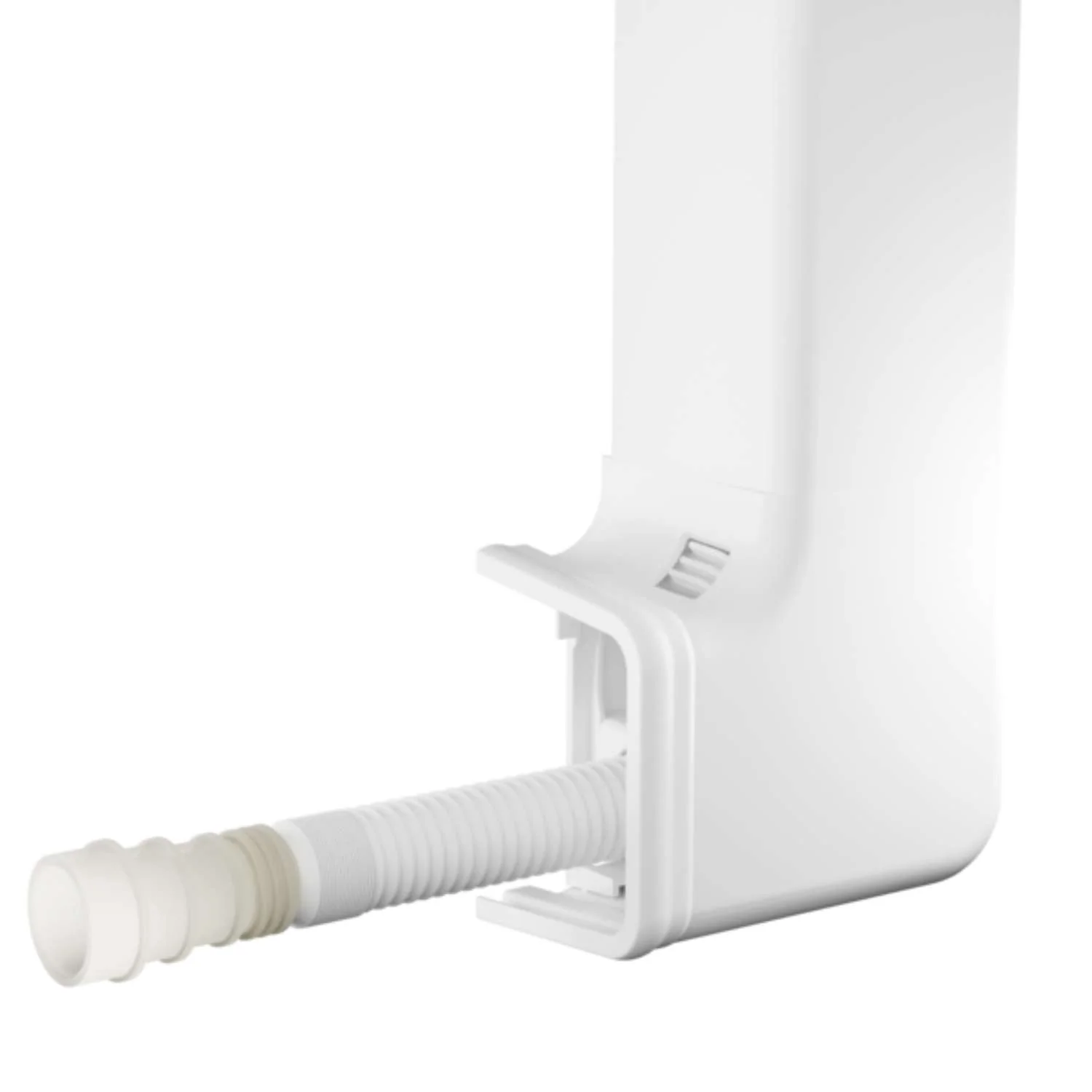

• Expandable corner hose: integrates filter, adapter and water reservoir
• Whisper-quiet operation: below 18 dB(A) thanks to diaphragm technology and vibration damping
• Pump capacity: up to 22 litres per hour
• Discharge height: up to 15 metres
• Optical level sensing: precise and resistant to interference
• Integrated switching power supply: universal operation with 100–240 VAC
• Sustainability: housing made from plant-based material
• Manufactured in Switzerland
