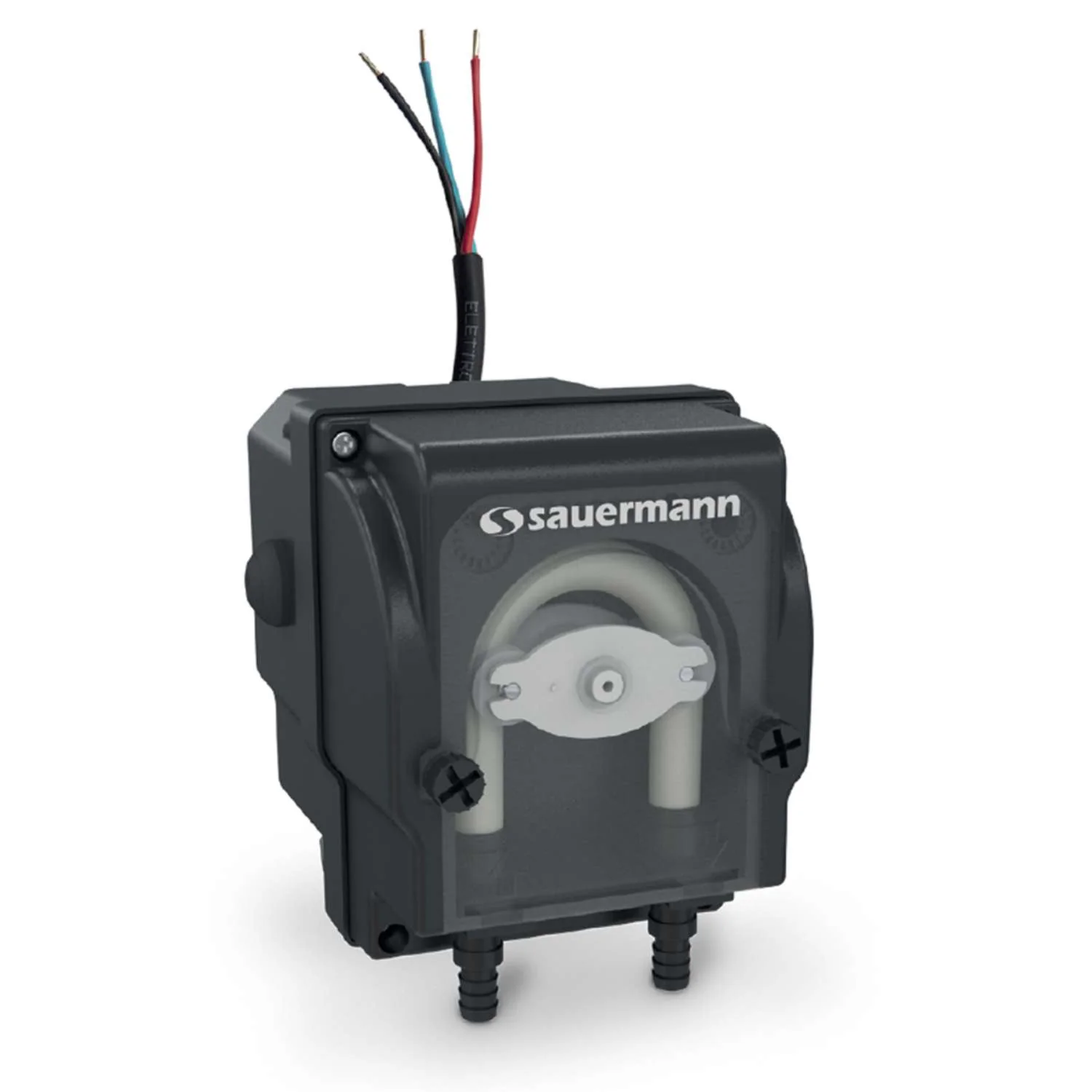

This peristaltic condensate pump is designed for all types of air conditioners up to 8 kW: wall units, air conditioning cabinets, ceiling units and ducted units.
The Si-50 is controlled by the air conditioner compressor power signal and operates for 4 minutes after the compressor stops.
Ideal applications:
• Businesses and industries with high levels of dust (bakeries, etc.) and chemicals (hairdressers, etc.)

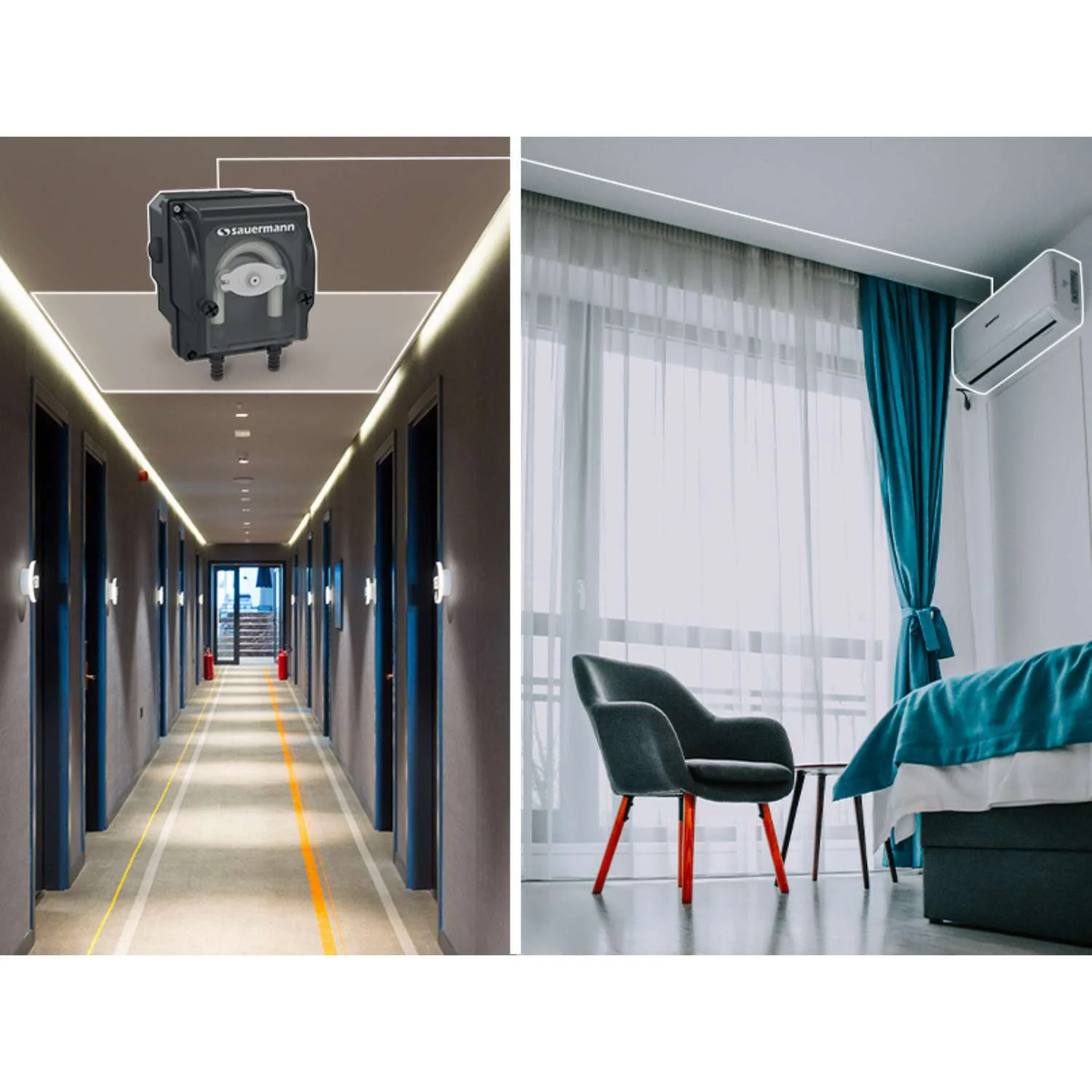

• Hotels (maintenance possible without accessing the rooms)
Important: the Si-50 is incompatible with reversible and inverter systems as it must not be used in continuous operation.
High performance
• Condensate discharge up to 12 m high
• Quiet, vibration-free operation
Extended reliability
• Thick, reinforced tube for longer service life
• Resistance to contaminated condensate (particles and chemicals)
Easy installation
• Compact size: L85 x W108 x H122 mm
• IP55 protection for installation in unventilated areas
Quick maintenance
• Easy-to-open front panel without tools for tube replacement
• Glass fuse replaceable in one easy step (standard cartridge 5 x 20)
Kit content
• Peristaltic pump Si-50
• Cable: 1.7 m, including 2 wires for power supply (P & N)
• Easy 2-screw sliding plastic bracket
• Ø 15 mm to Ø 6 mm adaptor + sleeve (Ø 15 x 35 mm) - (ACC00927)
Click here to view the product spec sheet
